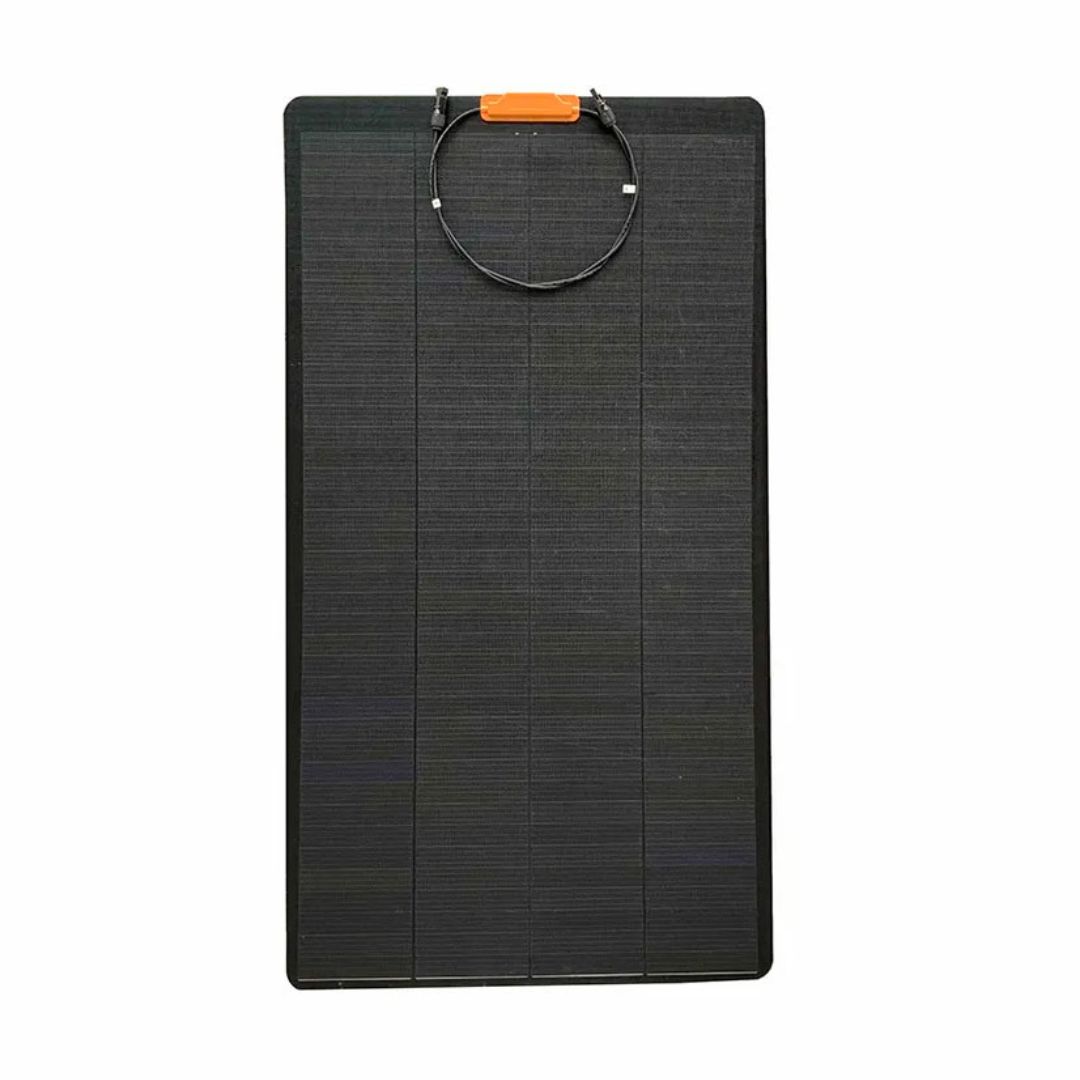

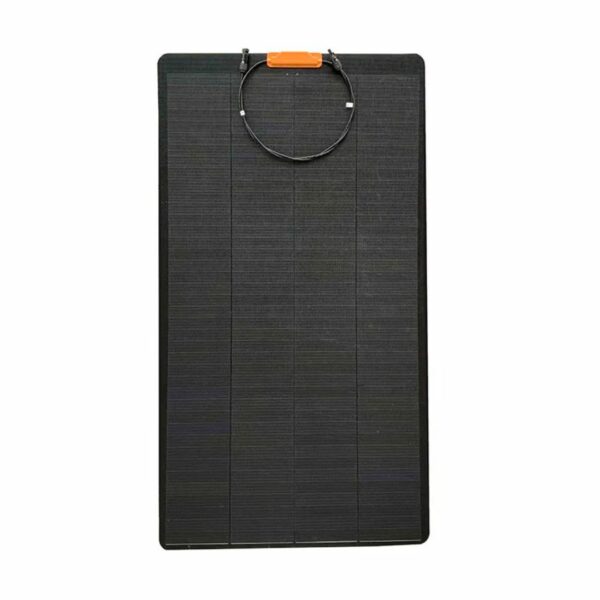

Clayton Power 160 W sFlex Solar Panel – Flexible Monocrystalline

Description

Model Number: BSM-SFLEX-160W

The 160 W sFlex Solar Panel is a lightweight, high-efficiency monocrystalline solar module designed for campervans, motorhomes, boats, and off-grid systems where flexibility and performance are key. With an ultra-thin 2 mm profile and rugged laminated construction, it can be easily mounted on curved or uneven surfaces — ideal for rooftops and mobile power setups.

Built for long-term reliability, the sFlex panel delivers high conversion efficiency, consistent energy output, and excellent performance even in partial shade or low-light conditions. Designed to pair seamlessly with Clayton Power LPS II or CPG4 battery systems, it provides a reliable renewable energy source to keep your off-grid power solution running longer.

Product Specifications:

• Model Number: BSM-SFLEX-160W

• Nominal Power (Pm): 160 W

• Voltage at Nominal Power (Vmp): 18.48 V

• Current at Nominal Power (Imp): 8.66 A

• Open-Circuit Voltage (Voc): 20.70 V

• Short-Circuit Current (Isc): 9.70 A

• Maximum Series Fuse Rating: 10 A

• Solar Cell Type: Monocrystalline

• Output Tolerance: 0 – +3 %

• Dimensions (HxWxL): 2 × 680 × 1170 mm

• Weight: 3 kg

• Operating Temperature: −20 °C to +65 °C

• Standard Test Conditions: 1000 W/m², AM 1.5, 25 °C

• Approvals: ISO 9001 / 14001, CE, Safety Class II
