Description

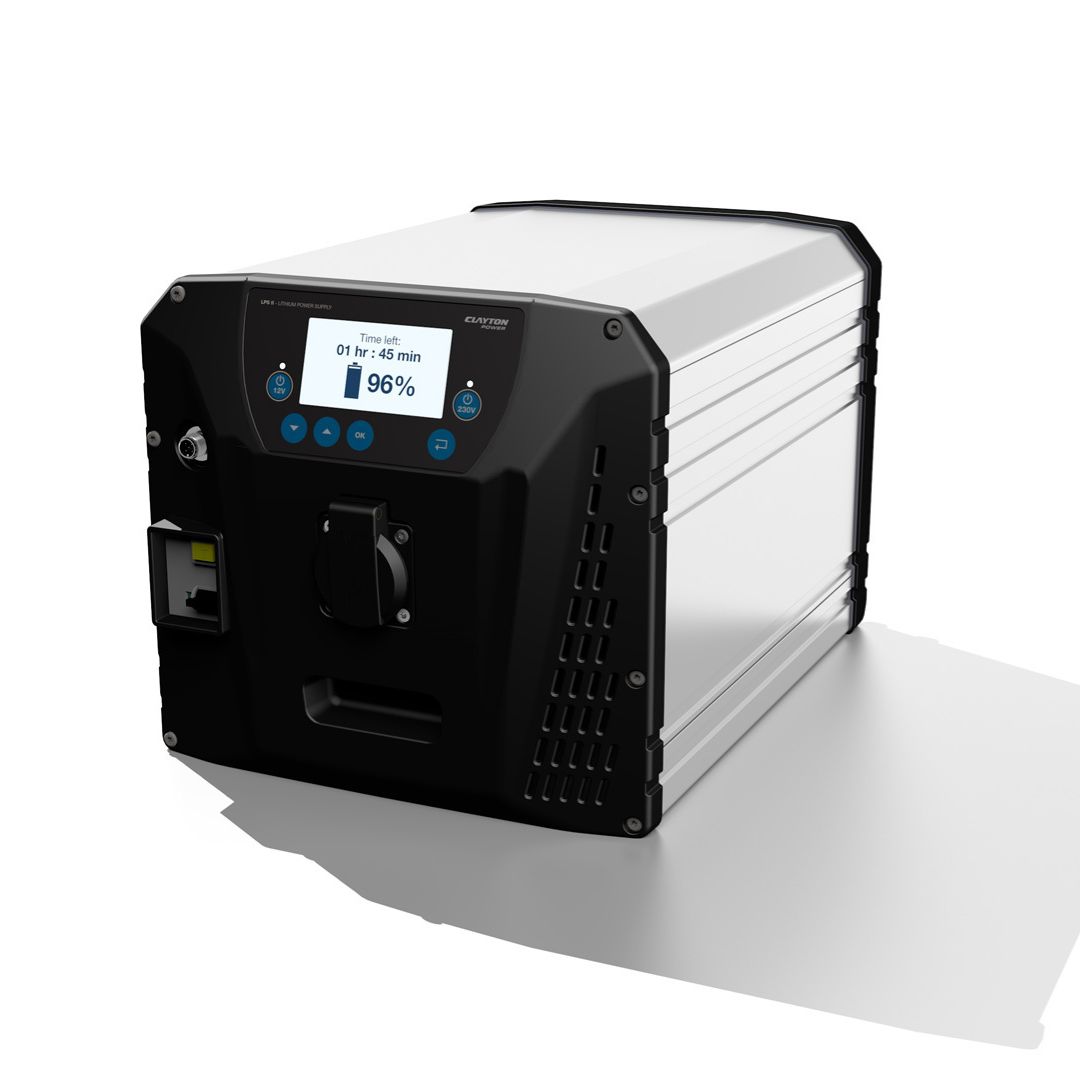

LPS II Lithium-Ion Campervan Power Station – 1.5kW to 3kW with Integrated Inverter and Bluetooth

The LPS II Lithium-Ion Power Station is the ultimate energy solution for campervan conversions, motorhomes, and off-grid leisure vehicles. Designed for reliability and efficiency, it combines a high-capacity LiFePO4 battery with a pure sine wave inverter, intelligent charger, and booster for alternator charging. With integrated Bluetooth connectivity, you can monitor and manage your power usage conveniently from your smartphone.

Built for adventure, the LPS II delivers continuous AC output ranging from 1.5 kW to 3 kW, supporting high-demand appliances while maintaining silent, efficient operation. Multiple safety features, including forced-air cooling and IP21 protection, ensure dependable performance in varied environments. Solar input capabilities and low self-discharge make it ideal for long-term off-grid camping or extended road trips.

Whether you need compact 1.5 kW power for essential devices or full 3 kW support for appliances and leisure electronics, the LPS II is engineered for flexibility and reliability, making it a perfect choice for professional campervan conversions and outdoor enthusiasts.

Product Specifications (depends on power):

  • Battery Type: Li-Ion 12V – 100Ah or 160Ah LiFePO4 (depending on variation)

  • Battery Capacity: 1.32 kWh – 2.11 kWh

  • Available Battery Capacity: 1.05 kWh – 1.9 kWh

  • AC Output Voltage: 230 VAC ±10%, pure sine wave

  • AC Output Frequency: 50 Hz

  • Continuous AC Output Power: 1.5 kW – 2.3 kW

  • AC Output Power 10 min Peak: 1.5 kW – 3 kW

  • AC Peak Power: Up to 5 kW

  • DC Output Voltage: 10–14.4 VDC

  • DC Discharge Current (Continuous / 1 min): 180 A / 270–350 A

  • Charging Options: Alternator booster (300 W), mains charger (550–720 W), solar input (max 400 W, 15 A)

  • Efficiency: AC output efficiency 94% (at 1000 W)

  • Self-Consumption: <1 W (DC only), 20–30 W (inverter + DC >50 W)

  • Operating Temperature: -20°C to 50°C (output limited below 0°C)

  • Cooling: Forced air (fan)

  • IP Rating: IP21

  • Dimensions (HxWxL): 256 x 277 x 409 mm

  • Weight: 22.5 kg – 27.5 kg (depending on variation)

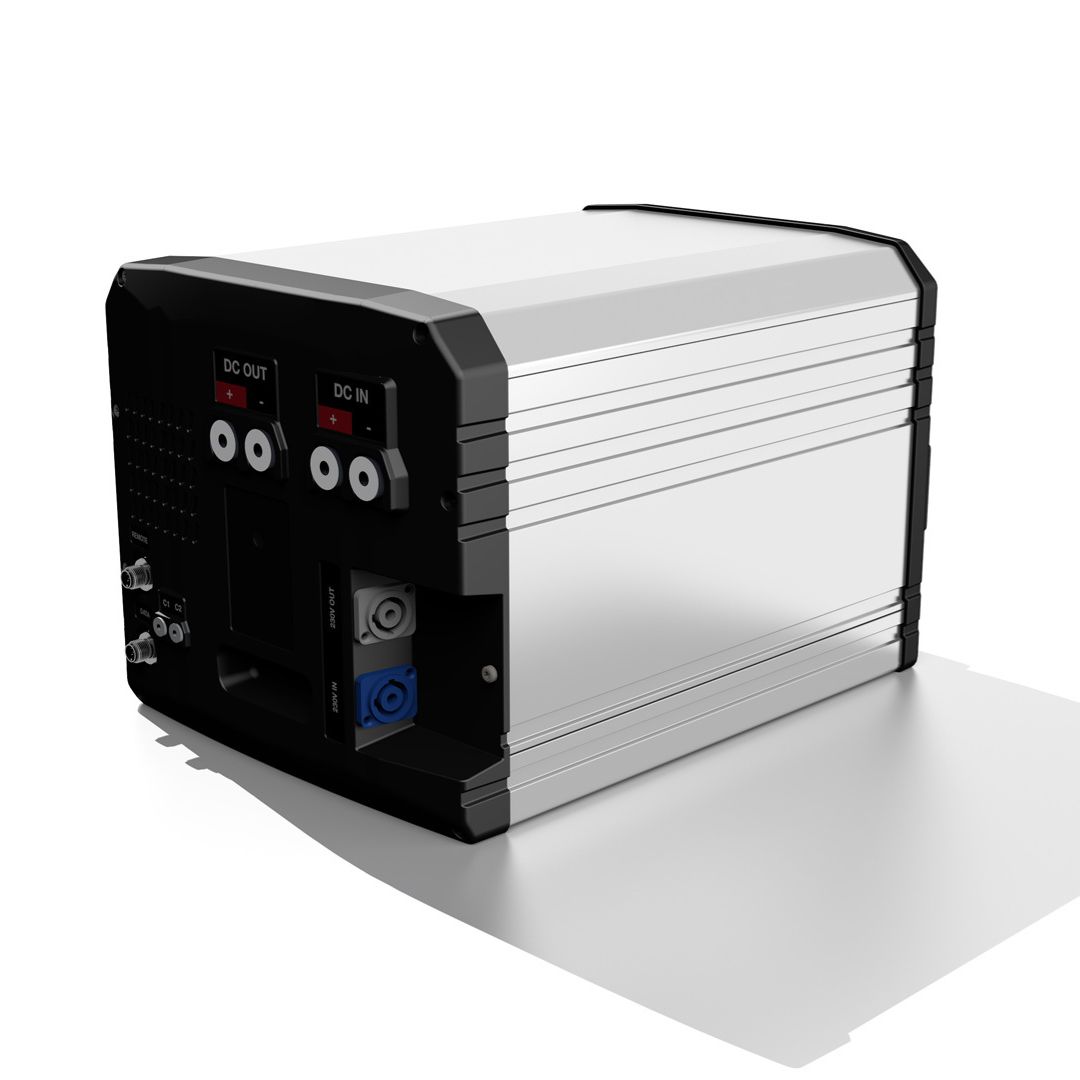

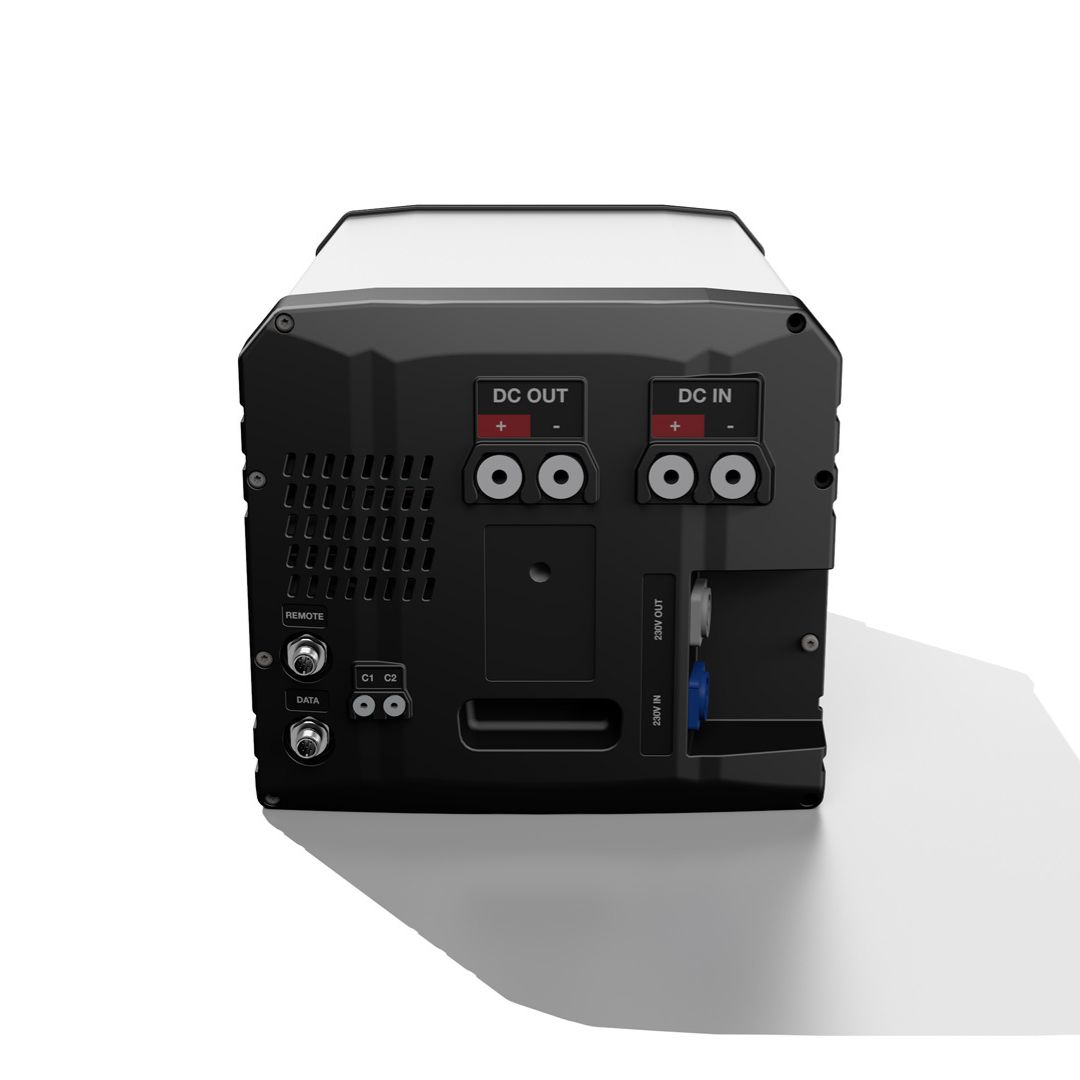

  • Connections: Neutrik & Schuko 230 VAC, M4 C1/C2, M8 DC input/output

  • Jumpstart Function: 40 A / 5 min

  • Bluetooth Connectivity: Integrated, for real-time monitoring and control

Available Variations:

  • 1.5 kW

  • 2 kW

  • 2.5 kW

  • 3 kW



Download User Manual

Access the full LPS II Lithium-Ion Power Station user manual below:


Download LPS II User Manual (PDF)

Download Remote User Manual

Learn how to operate the LPS II Power Station using the remote control:


Download LPS II How To Use The Remote User Manual (PDF)

LPS II – Certifications and compliance

LPS CE Declaration 027 230303
This shows that the LPS II complies with the EU regulations as required by CE.
The standards that the LPS II complies to are:EN 62368-1:2014/AC:2015
EN 61000-6-2:2005/AC:2005
EN 61000-6-3:2007/A1:2011/AC:2012
EN IEC 63000:2018

Additional information

Weight 27 kg
Dimensions 41 × 28 × 26 cm
Power

1500 – 1KWh SE, 2000 – 1KWh, 2500 – 1KWh, 3000 – 2KWh
