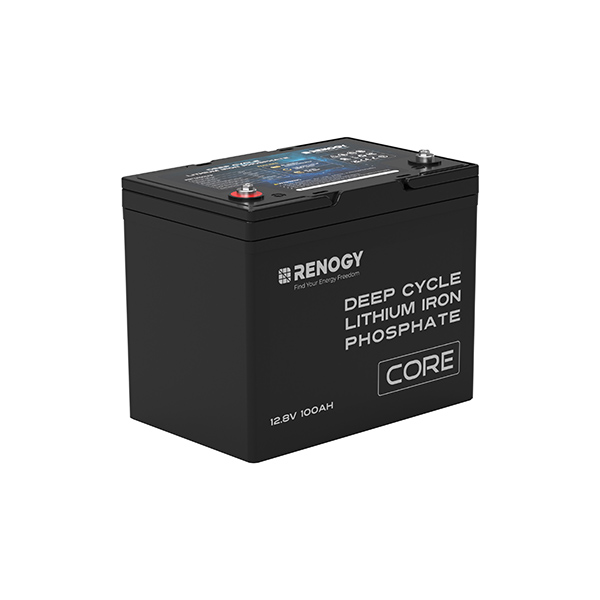

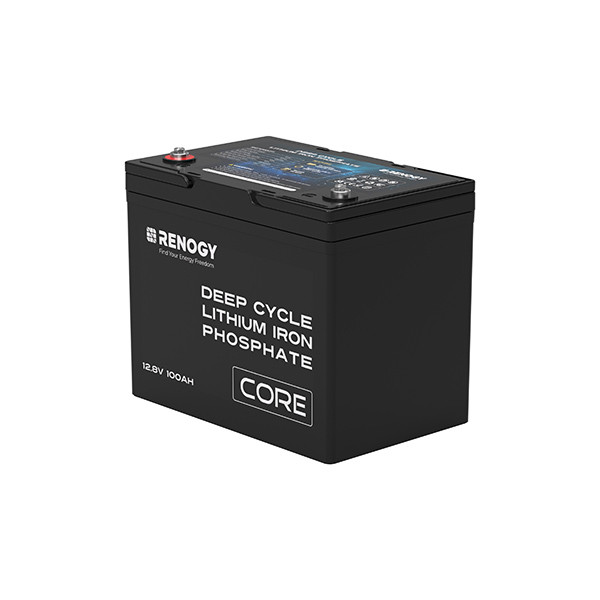

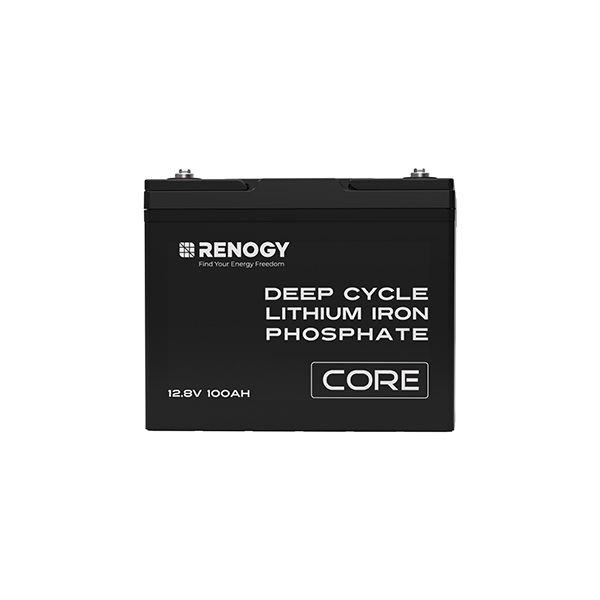

Renogy 12V 100Ah Deep Cycle Lithium Battery

Description

Core 12V 100Ah Trolling Motor Group 24 LiFePO4 Battery with Bluetooth

The Core 12V 100Ah Trolling Motor LiFePO4 Battery is a lightweight, high-performance power source built for trolling motors, marine use, RVs, off-road setups, and workshops. At only 9.9kg, it weighs less than half of a traditional lead-acid battery while providing powerful output and long cycle life.

With 150A continuous discharge (300A peak for 30 seconds), this battery supports 12V, 24V, and 36V trolling motor systems. Its Group 24 form factor is compact—one-third smaller than Group 31 batteries—making installation simple and efficient.

Equipped with Bluetooth 5.3 connectivity, you can monitor real-time performance, charge status, and battery health directly from your smartphone. The integrated 150A Battery Management System (BMS) with low-temperature cut-off ensures safety and reliability in all conditions. Its IP67 waterproof rating and marine-grade durability make it ideal for tough environments on and off the water.

Please allow 5 to 10 working days for delivery.

Product Specifications

Electrical Specifications

• Rated Capacity (0.5C, 25°C): 100Ah

• Nominal Voltage: 12.8V

• Energy: 1280Wh

• Cycle Life (0.5C/1C, 25°C): 5000 cycles (80% DOD)

• Voltage Range: 10.8V – 14.8V

Performance

• Maximum Continuous Charge Current: 100A

• Maximum Continuous Discharge Current: 150A

• Peak Discharge Current: 300A (30s)

Operating Conditions

• Charge Temperature Range: 0°C to 55°C (32°F to 131°F)

• Discharge Temperature Range: -20°C to 55°C (-4°F to 131°F)

• Storage Temperature Range: 0°C to 45°C (32°F to 113°F)

• Relative Humidity: 5% – 95%

• Protection Rating: IP67

Design & Dimensions

• Form Factor: Group 24 (1/3 smaller than Group 31)

• Dimensions (L × W × H): 260 × 168 × 209 mm (10.24 × 6.61 × 8.23 in)

• Weight: 9.9 kg (21.83 lbs)

• Terminal Bolt Size: M8 × 1.25 × 12 mm

Connectivity & Safety

• Bluetooth 5.3: Remote monitoring via smartphone app

• BMS: 150A with low-temperature protection

• Marine-Grade Build: Waterproof, dustproof, and corrosion-resistant

Package Includes

• 1 × 12V 100Ah LiFePO4 Battery

• 2 × Long Terminal Bolts

• 2 × Insulation Sleeves

• 1 × User Manual

Certifications
RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA

Warranty: 5 Years
