Renogy Bluetooth Module

Description

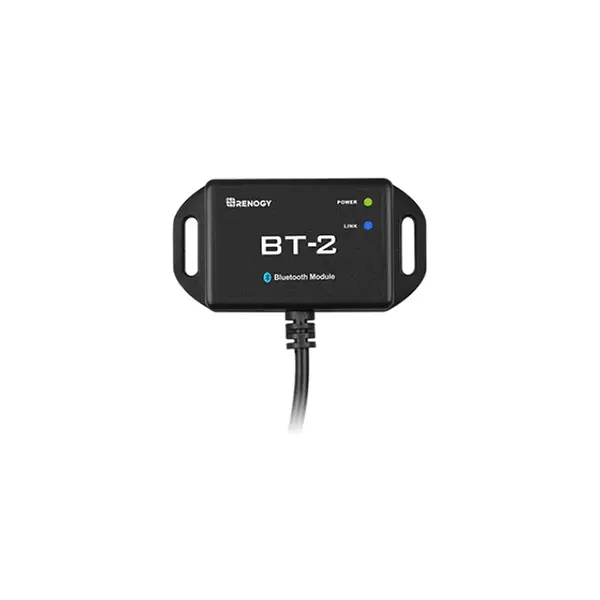

BT-2 Bluetooth Module for Renogy Products with RS485 Port

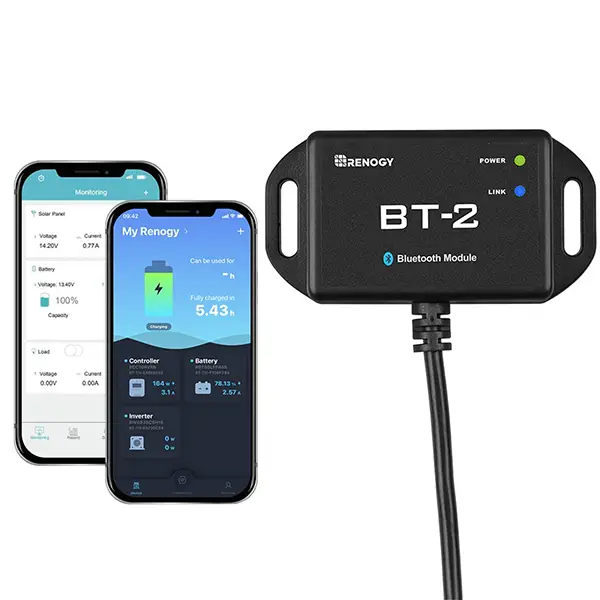

The Renogy BT-2 Bluetooth Module is the next-generation solution for wireless monitoring and control of select Renogy solar charge controllers, DC-DC battery chargers, smart lithium batteries, and inverters. Powered via its RJ45 communication port, the BT-2 enables seamless connection to the Renogy DC Home smartphone app, giving you full control and insight into your off-grid power system from your mobile device.

With the BT-2, you can monitor real-time and historical system data, configure settings, update firmware, and diagnose your Renogy products—all from the convenience of your phone or tablet. Compatible with all RS485 communication port products, it supports devices such as the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, Pure Sine Wave Inverters with Power Saving Mode, and Dual DC-DC MPPT Battery Chargers.

The module is easy to install: simply connect to the RS485 port and follow the app instructions. Powered by solar energy with an ultra-low-power dedicated chip, the module provides a signal range of up to 82ft, ensuring fast and reliable communication.

Please allow 5 to 10 working days for delivery.

Product Specifications

• Communication Protocol: RS485

• Port Type: RJ45

• Input Voltage: 5V or 12V

• Protection Grade: IP54

• Standby Power Consumption: 0.04W

• Operating Power Consumption: 0.05W

• Communication Range: ≤82 ft (25 m)

• Serial Baud Rate: Fixed 9600bps

• Cable Length: 5.0 m (16.4 ft)

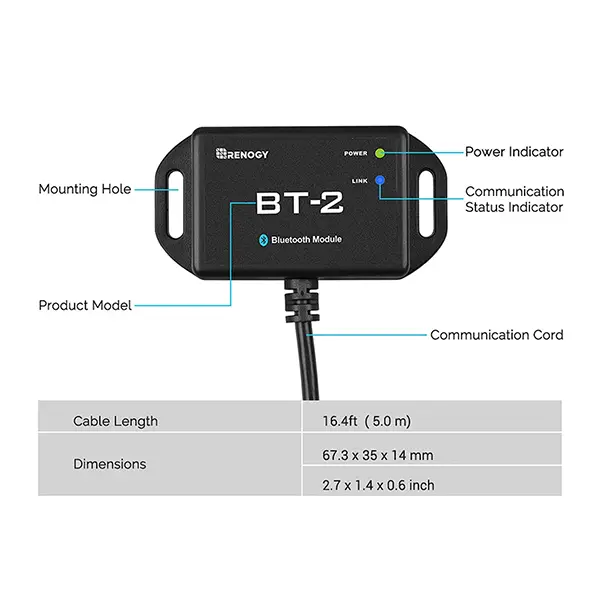

• Dimensions: 67.3 × 35 × 14 mm (2.65 × 1.38 × 0.55 in)

• Installation Dimensions: φ67.3 × 3.5 mm (2.66 × 0.14 in)

• Operating Temperature Range: -20°C to 85°C (-4°F to 185°F)

• Weight: 130 g (4.58 oz)

Package Includes

• 1 × BT-2 Bluetooth Module

• 1-Year Material Warranty

Download User Guide
