Renogy Super Slim Solid State Lithium Battery 104 Ah

Description

REGO 12.8V 104Ah Super Slim Lithium Iron Phosphate (LiFePO4) Battery

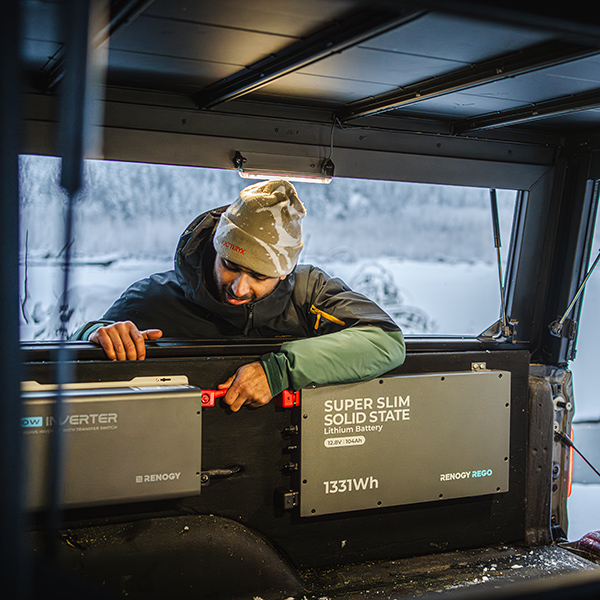

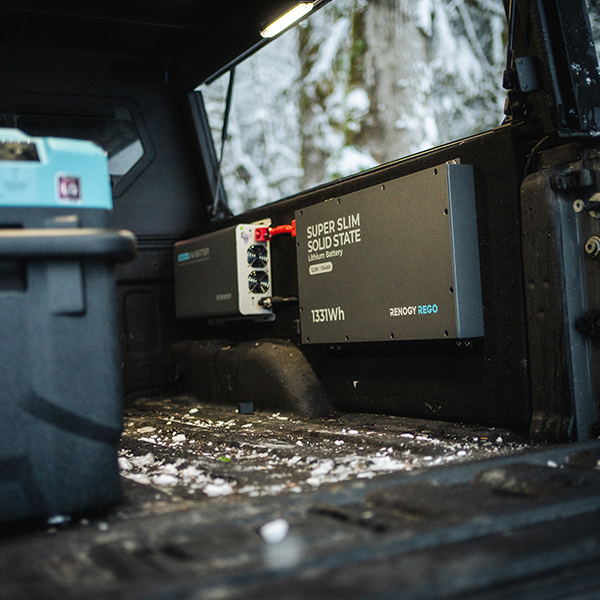

The REGO 12.8V 104Ah Super Slim LiFePO4 Battery is an ultra-compact, high-performance power solution designed for tight installations in RVs, campervans, 4x4s, and off-grid systems. With a super slim 61mm profile, it can be easily mounted under seats, behind panels, in canopies, or beneath flooring – all with secure stability thanks to the included vibration-resistant mounting brackets.

Engineered for safety and reliability, this battery features a 9x slower temperature rise, significantly reducing the risk of thermal runaway. It delivers 200A continuous output, powerful enough to run a 2000W inverter from a single unit, while remaining efficient and dependable. With 6000+ cycles at 80% depth of discharge, it offers long service life and consistent energy delivery.

Thanks to its low-temperature charging protection (down to -10°C / 14°F) and IP67 waterproof and dustproof rating, the REGO slimline battery is ready for demanding environments. Backed by an 8-year warranty, it’s built to perform wherever your journey takes you.

Please allow 5 to 10 working days for delivery.

Product Specifications

Battery Details

• Type: Lithium Iron Phosphate (LiFePO4)

• Nominal Voltage: 12.8V

• Rated Capacity (0.5C, 25°C): 104Ah

• Energy: 1331Wh

• Cycle Life (0.5C, 25°C): 6000 cycles (80% DOD, 80% EOL)

Performance & Safety

• Voltage Range: 10V – 14.8V

• Maximum Charge Current: 100A

• Maximum Continuous Discharge Current: 200A

• Peak Discharge Current: 290A (30s)

• Charge Temperature Range: -10°C to 55°C (14°F to 131°F)

• Discharge Temperature Range: -20°C to 60°C (-4°F to 140°F)

• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)

• Relative Humidity: 5% – 95%

• Protection Rating: IP67

• Safety: 9x slower thermal rise, reduced thermal runaway risk

Connection & Mounting

• Connection Method: Series & Parallel (up to 4P4S), Parallel (up to 16P), Series (up to 4S)

• Terminal Bolt Sizes: M8 × 1.25 × 12 mm / M8 × 1.25 × 16 mm

• Recommended Torque: 70.8 in-lb (8 N·m)

• Mounting Kit: Includes vibration-resistant bracket system

Dimensions & Weight

• Dimensions: 579 × 290 × 61 mm (22.8 × 11.4 × 2.4 in)

• Weight: 12.8 kg (28.22 lbs)

Package Includes

• 1 × REGO 12.8V 104Ah Super Slim LiFePO4 Battery

• 2 × Terminal Bolts (M8 × 1.25 × 12 mm)

• 2 × Long Terminal Bolts (M8 × 1.25 × 16 mm)

• 2 × Insulation Sleeves

• 1 × Battery Bracket Kit

• 1 × User Manual

Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA

Warranty: 8 Years

Download User Guide
