Renogy Lithium Iron Phosphate Battery 100 Ah Self Heating

Description

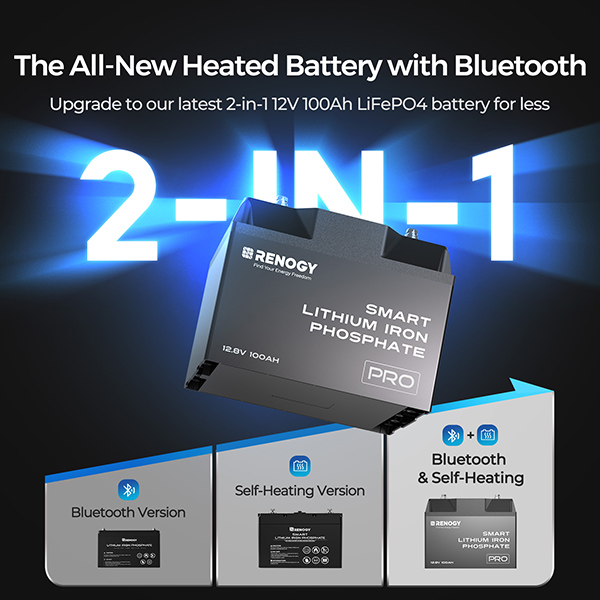

Pro 12V 100Ah Deep Cycle LiFePO4 Battery with Bluetooth & Self-Heating Function

The Pro 12V 100Ah Deep Cycle Lithium Iron Phosphate (LiFePO4) Battery is a smart, reliable power solution for marine, RV, off-grid, and remote living applications. Featuring a self-heating function and Bluetooth connectivity, it provides safe, consistent, and convenient energy management even in extreme conditions.

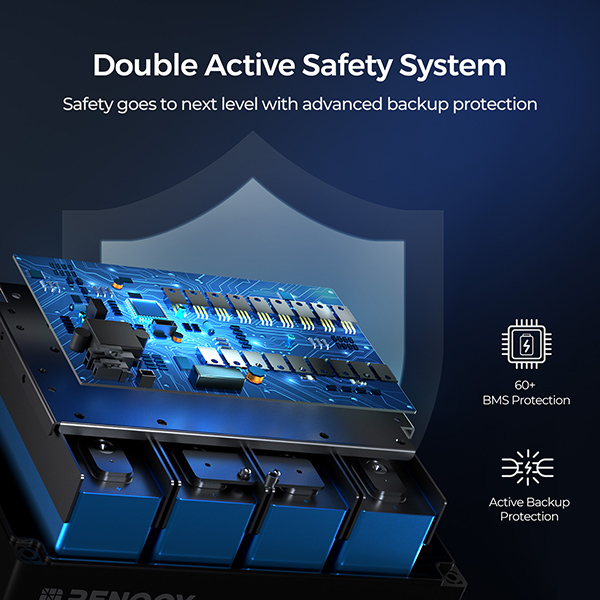

Equipped with a double active protection system with over 60 BMS safeguards and active backup protection, this battery ensures maximum safety during operation. Its flame-retardant UL94-V0 casing, IP67 waterproof rating, and ISO 9227 corrosion resistance make it ideal for challenging environments such as fishing, boating, and off-road adventures.

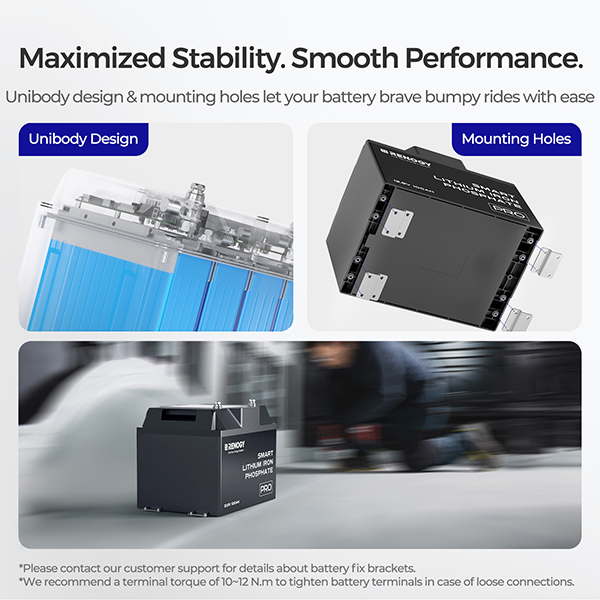

The rugged design includes mounting holes for easy installation and the battery supports parallel connections up to 8 units for expandable energy storage. Real-time monitoring via Bluetooth and OTA firmware updates keep your battery performing at its best for years to come.

Please allow 5 to 10 working days for delivery.

Product Specifications

Battery Details

• Type: Lithium Iron Phosphate (LiFePO4)

• Nominal Voltage: 12.8V

• Rated Capacity (0.5C, 25°C): 100Ah

• Energy: 1280Wh

• Cycle Life (0.5C, 25°C): 5000 cycles (80% DOD, 80% EOL)

Performance

• Maximum Charge Current: 100A

• Maximum Continuous Discharge Current: 100A

• Peak Discharge Current: 245A (30s)

• Voltage Range: 10V – 14.8V

Operating Conditions

• Charge Temperature Range: -20°C to 55°C (-4°F to 131°F)

• Discharge Temperature Range: -20°C to 60°C (-4°F to 140°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Relative Humidity: 10% – 95%

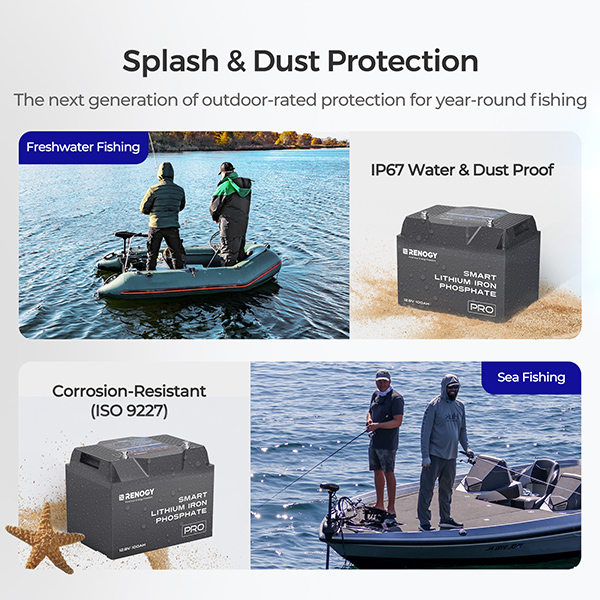

• Protection Rating: IP67

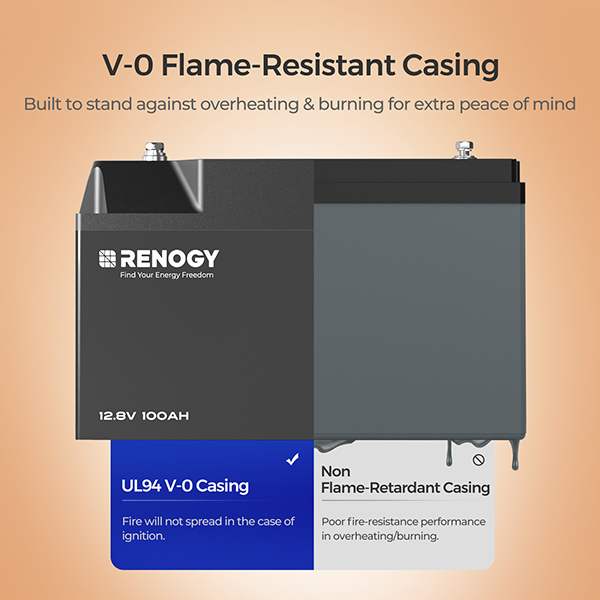

• Flame Retardancy: UL94-V0

Connection & Safety

• Parallel Connection: Up to 8 units

• Bluetooth: Real-time monitoring and OTA updates

• Housing Material: PC/ABS

Dimensions & Weight

• Dimensions (L × W × H): 268 × 193 × 205 mm (10.6 × 7.6 × 8.1 in)

• Weight: 12.2 kg (26.9 lbs)

• Terminal Bolt Size: M8

• Recommended Torque: 70.8 in-lb / 8 N·m

Package Includes

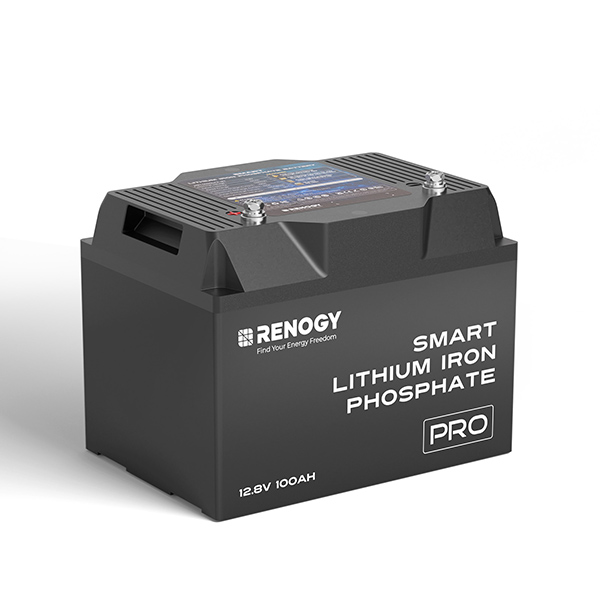

• 1 × Pro 12V 100Ah LiFePO4 Battery with Bluetooth

• 2 × Terminal Bolts (M8 × 1.25 × 12 mm)

• 2 × Long Terminal Bolts (M8 × 1.25 × 16 mm)

• 1 × User Manual

Certifications
MSDS, UN38.3, FCC, CE, PSE, UKCA

Warranty: 7 Years

Download User Guide
